PRESS
- POWER 600 Tonn
- HORIZONTAL LIGHT BETWEEN THE MOUNTAINS 1900 mm.
- PRESSED CYLINDER STROKE 700 mm.
- MAXIMUM VERTICAL LIGHT BETWEEN THE LOWER FLOOR AND 1200 mm WORKTOP.
- MINIMUM VERTICAL LIGHT BETWEEN LOWER FLOOR AND 500 mm. FLOOR.
- MOBILE TABLE DIMENSIONS 1600X1200 mm.
- FIXED TABLE DIMENSIONS 1800X1200 mm.
- QUICK RELEASE SPEED 200 mm / sec.
- FAST RETURN SPEED 200 mm / sec.
- WORKING SPEED 22/15 mm./sec.

PREMILAMINE
- POWER 200 Tonn
- STROKE 300 mm.
- FLOOR SIZE DIMENSIONS 1500X1000 mm.

SYSTEM DATA
- INSTALLED ELECTRIC POWER 60 Kw
- OIL QUANTITY 2000 Lt.
- TOTAL WEIGHT 52000 Kg.

• THE PARTICULARITY OF THIS PRESS IS THAT IT COMES FROM THE BOTTOM TOWARDS THE TOP AND ITS DIMENSIONS ARE THE FOLLOWING:
• POWER 100TON
• LIGHT BETWEEN THE COLUMNS 2300X1300MM
• LIGHT AMONG THE OPEN PLANS 1200MM
• LIGHT BETWEEN CLOSED WORKTOPS 150MM
• 600MM PISTON STROKE
• THIS PRESS HAS THE POSSIBILITY TO MOVE THE UPPER TOP IN DIFFERENT HEIGHTS UP TO A MAXIMUM OF 5 HOLES OF 150MM DISTANCE THEREFORE BRINGING THE LIGHT BETWEEN THE OPEN WORKTOPS MINIMUM TO 750MM INSTEAD OF 1200MM
• ASCENT / DESCENT SPEED 350MM / SEC
• WORKING SPEED 25MM / SEC
• OVERALL DIMENSIONS 3000X4500X3100MM (WIDTH X DEPTH X HEIGHT)
• WEIGHT 15.000KG

• Power 200Ton
• Clearance between the shoulders on the operator side 1520mm
• Clearance between the shoulders laterally 510mm
• Vertical gap between the open planes with mounted plate (modifiable by means of hydraulic lifting cylinders placed under the bed): position 1 about 940 mm position 2 about 740 mm position 3 about 540 mm
• Vertical gap between the open planes without plate mounted about 1020mm
• Piston stroke 500mm
• Descent / ascent speed approx. 28 mm / sec
• Working speed about 3 mm / sec
• Bottom plate size 1490x740mm
• Tank with a capacity of about 200Lt
• Approximate weight Kg. 5.000

• Power 60Tons
• Operator side clearance between shoulders 1550
• Distance between the open planes about 490mm
• Piston stroke about 350mm
• Descent speed 40mm / sec
• Working speed 3mm / sec 1500x600mm lower shelf equipped with: N ° 37 holes of M10 N° 18 holes of M16 Central through hole diam. 100mm
• 1500x400mm movable table equipped with N ° 10 holes of M16
• Movable table guided on 02 guide columns
• Tank with a capacity of about 250Lt
• Press equipped with electrical system with PLC "Schneider" and Touch Screen brand "Proface" able to set high / low press height, set press pressure, display real height, display real pressure
• Manual, automatic cycle
• Completely new electrical and hydraulic system
• Overall dimensions of the press approximately 2,700x1,000x2,350mm (Width x Depth x Height)
• Approximate weight Kg. 3.000

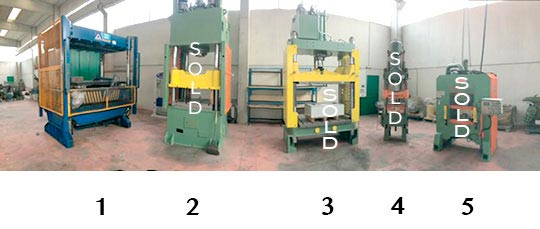

1) "4 Columns" Power 100Ton light 2300x1400x700 / 1300mm (matr. 16018)
2) "4 Columns" Power 250Ton light 1100x1200x1000mm stroke 700mm with provision for sheet metal prizes of 100Ton stroke 200mm
3) "4 Columns" Power 100Ton light 1500x900x1200mm stroke 700mm (Site AEM3 - Used aem3 3)
4) "4 Columns" Power 200Ton light 500x500x700mm stroke 250mm (AEM3 site - Used 04062018)
5) "Monolithic" power 500Ton light 650x600x260mm stroke 200mm (site AEM3 - Used 05062018)

- "4 COLUMNS" PRESS
- POWER 30TON
- LIGHT AMONG THE COLUMNS 1000x1000MM
- LIGHT BETWEEN THE OPENED FLOORS 1000MM
- STROKE 700MM
- DESCENT SPEED 100MM / SEC
- WORKING SPEED 3MM / SEC
- 100MM / SEC RETURN SPEED
- OPTICAL BARRIERS ON THE OPERATOR'S SIDE AND FIXED PROTECTION ON THE NET ON THE REMAINING SIDES PRESS
- PRESS EQUIPPED WITH PLC SYSTEM BRAND TELEMECANIQUE AND TOUCH SCREEN BRAND PHOENIX
- BRAND REXROTH HYDRAULIC SYSTEM
- 7.5 kW ELECTRIC MOTOR
- OVERALL DIMENSIONS 2.200x1.800x2.800MM
- WEIGHT 4,500Kg

• POWER 30TON
• LIGHT BETWEEN COLUMNS 650X400MM
• LIGHT BETWEEN STEM PISTON AND FIXED LOWER FLOOR 500MM
• 300MM STROKE
• LOWER FLOOR EQUIPPED WITH CENTRAL HOLE FROM DIAM. 90 WITH CAP
• MANUAL PRESS DISTRIBUTOR COMMAND + BUTTON
• DOWNWARD SPEED 28MM / SEC
• WORKING SPEED 2MM / SEC
• RETURN SPEED 28MM / SEC
• PRESS EQUIPPED ALSO WITH THE IMMEDIATE EXCLUSION OF THE APPROXIMATE SPEED AND OF THE POSSIBILITY OF OPERATING THE PRESS ONLY IN WORKING SPEED THROUGH THE SELECTOR ON THE ELECTRIC PANEL

PRESS
- PUSH POWER 300 Tonn
- TOTAL ELECTRIC POWER INSTALLED 30 + 30 Kw
- OPERATOR SIDE LIGHT 3000 mm.
- LATERAL LIGHT 1300 mm.
- VERTICAL LIGHT WITH COMPLETELY OPEN PRESS 1300 mm.
- VERTICAL LIGHT WITH PRESS COMPLETELY CLOSED 300 mm.
- DIMENSIONS WORKING AREA 3000X1700 mm.
- CYLINDER STROKE 1000 mm.
- WORKTOP HEIGHT 900 mm.
- PRESS SIZE 4000X2300 mm. HEIGHT 5500 mm.
- QUICK RELEASE SPEED 200 mm / sec.
- WORKING SPEED AT MAXIMUM POWER 5 mm / sec.
- FAST RETURN SPEED 200 mm / sec.

PRESS CONCEIVED WITH A HYDRAULIC AND ELECTRICAL SYSTEMS SYSTEM WITH VECTOR CONTROL INVERTERS AND MOTORS FOR ENERGY CONTAINMENT
ENERGY SAVING UP TO 40%
PRESS IN ULTIMATE PHASE

- PUSH POWER 50 Tonn
- HYDRAULIC CYLINDER STROKE 800 mm..
- FRONT LIGHT AMONG THE 1550 mm. COLUMNS.
- LATERAL LIGHT BETWEEN THE COLUMNS 700 mm.
- MAXIMUM VERTICAL LIGHT 1200 mm.
- WORKING PLAN 1500x950 mm.
- SPEED OF DESCENT 150 mm./sec.
- WORKING SPEED 7,5 mm / sec.
- UPHOLSTERY SPEED 150 mm./sec.
- DIMENSIONS OVERALL 2700x2400 mm. HEIGHT 4300 mm.

- CYLINDER POWER 150 tons
- CYLINDER STROKE 500 mm.
- INCENTING FROM THE PISTON CENTER 350 mm.
- TOP TABLE LIGHT 650 mm.
- LOWER TABLE DIMENSIONS 900x600 mm.
- DIMENSIONS UPPER TABLE 830x400 mm.
- TOTAL HEIGHT 2700 mm.
- TOTAL WIDTH 3200 mm.
- TOTAL DEPTH 2100 mm.
- TOTAL WEIGHT 8150 Kg.
- QUANTITY OF CENTRAL UNIT OIL 180 Lt.
- INSTALLED POWER 11 Kw
- CURRENT APPROACH SPEED 25 mm./sec.
- SPEED OF APPROXIMATION WITH APPLICATION OF PHOTOELECTRIC BARRIERS 50-150 mm./sec.
- WORKING SPEED 4 mm / sec.

- PISTON STROKE mm. 800
- MAXIMUM LIGHT mm. 1100
- PLAN DIMENSION mm. 1300x800
- OVERALL DIMENSIONS mm. 2200x1600 h 4900
- WEIGHT Kg. 20.000
- INCLUDING BLANK HOLDER

- PLAN DIMENSION mm. 1100x800
- PISTON STROKE mm. 800
- MAXIMUM LIGHT mm. 970
- OVERALL DIMENSION mm. 2400x1100 h 4330
- WEIGHT Kg. 25.000
- INCLUDING BLANK HOLDER

- 500 TONN POWER
- TABLE LENGHT mm. 600
- TABLE WIDHT mm. 600
- SLIDE TRAVEL mm. 250
- PASSAGE BETWEEN UPRIGHTS mm. 350
- DIMENSION mm. 860x1400 h 2560
- WEIGHT Kg. 5000

- PLAN DIMENSION mm. 1450x1170
- PISTON STROKE mm. 800
- MAXIMUM LIGHT mm. 1200
- OVERALL DIMENSIONS mm. 2700x2400 h 4300
- LOWER EXTRIBLE LOWER FLOOR
- REAR FOLDING REAR POSTERIOR

- POWER BOOST tons. 40 - 400
- USEFUL LIGHT between the SHOULDERS mm. 1900
- LIGHT between OPEN PLANS mm. 1200
- STROKE OF THE MOBILE FLOOR mm. 700
- MOBILE WORKTOP mm. 1600x1200
- LOWER WORKTOP mm. 1800x1200
- SPEED in CLOSING mm./sec. 300
- SPEED OPENING mm./sec. 230
- ADJUSTABLE WORKING SPEED mm./sec. 15 - 22

SHEET PRESS EXTRACTOR FEATURES:
- POWER STROKE tons. 200
- STROKE mm. 300
- PRIMING PLANE DIMENSION mm. 1500X1000

- POWER tonn. 50 - 500
- LIGHT NET between SHOULDERS mm. 855
- LIGHT NET between SHOULDER SIDE mm. 1320
- LIGHT between PLANS OPEN mm. 1010
- STROKE MOBILE PLAN mm. 700
- DISTANCE from LAND of the WORK PLAN mm. 1100
- SPEED CLOSED/OPEN mm./sec. 200
- SPEED WORK ADJUSTABLE mm./sec. 5 - 10

FEATURES EXTRACTION METAL AWARDS:
- POWER tonn. 40
- STROKE mm. 200

- POWER tonn.300
- LIGHT NET between SHOULDERS mm. 2500
- LIGHT between PLANS OPEN mm. 1000
- STROKE MOBILE PLAN mm. 500
- DISTANCE from LAND of the WORK PLAN mm. 1000
- SPEED CLOSED/OPEN mm./sec. 28
- SPEED WORK ADJUSTABLE mm./sec. 3

Press command manual distributor + button and complete n ° 02 adjustable limit switches in both directions ascent/descent.
Complete even 1000 mm blade. to bend sheets up to a thickness of 10 mm. of ns. standard.
Lifting of the hydraulic pallet distributor via manual lever placed under the electrical panel of the press command.

- POWER tonn.260
- FRONT LIGHT PROFIT between COLUMNS mm. 2700
- LIGHT SIDE NET between COLUMNS mm. 1200
- LIGHT between PLANS OPEN mm. 1700
- STROKE MOBILE PLAN mm. 1000
- SPEED CLOSED/OPEN mm./sec. 250
- SPEED WORK ADJUSTABLE mm./sec. 10
- DISTANCE from LAND of the WORK PLAN mm. 650/850

The press has automatic and manual cycle to cycle, and is equipped with a control panel with a keyboard that can be set and displayed data and readable by means of a liquid crystal display is easy to read, PC controller.

OPTIONAL ON REQUEST:
The press can be provided with a plate recipe pillow that allows:
- In phase of work as a cushion blank holder a force of adjustable contrast of 50 tons. maximum with a stroke of 100 mm.
- In the work phase extractor as a force of adjustable thrust of a maximum of 50 tons.

- POWER tonn. 150
- STROKE MOBILE PLAN mm. 500
- SPEED CLOSED/OPEN mm./sec. 25
- SPEED WORK ADJUSTABLE mm./sec. 4

- POWER tonn. 1500
- NUMBER PISTON 1
- MAXIMUM OPERATING PRESSURE bar 245
- DIMENSIONS FLOOR X-Y mm. 1.100X1.235
- POKER SIZE X-Y mm. 1.200x1.360
- NUMBER GUIDE 4
- STROKE mm. 700
- LIGHT at TOP DEAD mm. 1.400
- LIGHT the DEAD LOWER mm. 700
- WINDOW DIMENSIONS mm. 410x700
- SPEED MAXIMUM CLOSING QUICK TABLE TOP MOBILE mm./sec. 300
- SPEED PRESSING ADJUSTABLE mm./sec. 18.6 / 6.23
- SPEED MAXIMUM OPENING QUICK TABLE TOP MOBILE mm./sec. 300
- NUMBER 3 ENGINES
- POWER of ELECTRIC MOTORS INSTALLED n° 2 55kW + n ° 1 9Kw
- WEIGHT Kg. 46.000
- WIDTH mm. 3.200
- DEPTH mm. 3.000
- HEIGHT mm. 6.500
- HEIGHT of GROUND mm. 1.000

- CYLINDER POWER tonn. 1500
- CYLINDER STROKE mm. 650
- OPEN CYLINDER SPAN WORK TABLE mm. 1650
- OPERATOR’S SIDE SPAN mm. 1055
- LATERAL OPERATOR’S SIDE SPAN mm. 855
- COMPLETE WITH TWO 20 tonn. FEEDING CYLINDERS
- USED FOR MANUFACTURING WELDED PIPES.

PRESS WHICH RISES from the BOTTOM UPWARDS
- LIGHT BETWEEN the SHOULDERS on the OPERATOR SIDE mm. 2100
- LIGHT BETWEEN FLOORS OPEN mm. 5000
- PISTON STROKE mm. 3000
- RATE OF CLIMB/DESCENT mm./sec. 500
- WORKING SPEED mm./sec. 60
- TOTAL POWER of the MOTORS INSTALLED ABOUT Kw 800 (N° 03x250 kw + N° 01x50 kw)
- CAPACITY of the TANK ABOUT lt. 8.000
- DIMENSIONS of the PRESS ABOUT mm. 3.000 x 1.100 x 12.000 (W x D x H)
- DIMENSIONS of the TANK ABOUT mm. 5.000 x 2.500 x 2.800 (W x D x H)
